When INOVA and Seismic Source Co. joined forces to create the next generation vib controller, we gave acquisition crews a whole new way of operating.

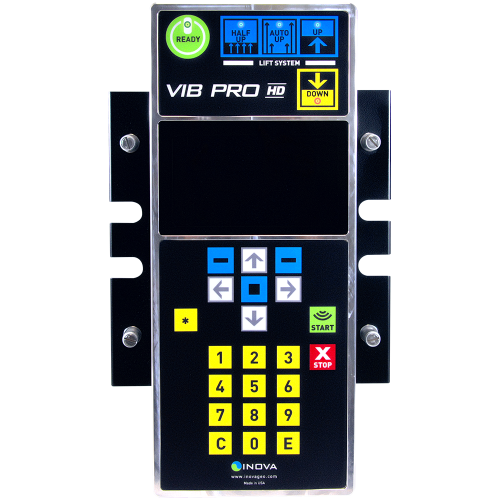

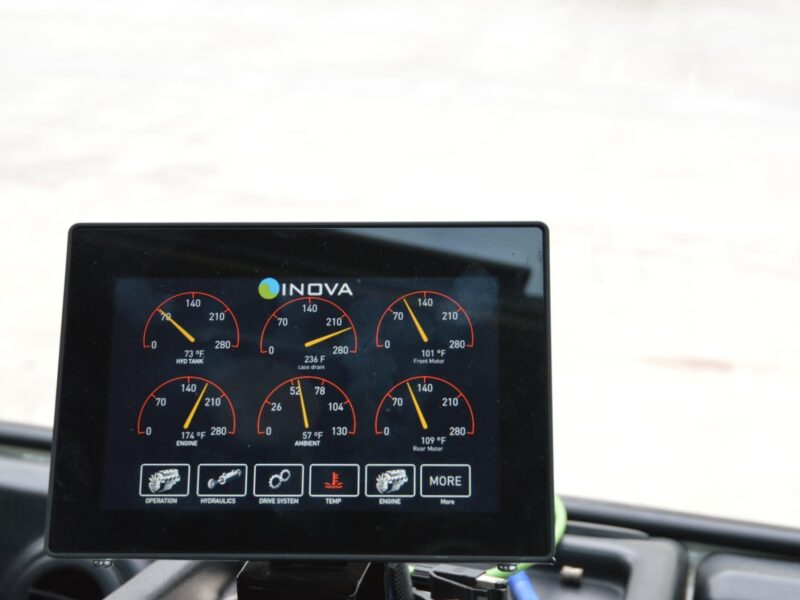

A completely redesigned hardware experience, the new Vib Pro HD combines the loved features of intuitive buttons, large displays and compact casing from Seismic Source, with the intelligence and patented Harmonic Distortion Reduction (HDR), High Frequency Control, and Low Frequency Limit (LFL) technologies from INOVA. The new Vib Pro HD is also analog and digital radio compatible improving your ability to communicate with fleets in any environment.
The saying, “Garbage in Garbage out”, most emphatically applies to vibroseis operations. If you want the source signature to maintain a specific amplitude and phase, you’ll need to control how the vibrator delivers energy while managing harmonic distortion introduced during the sweep.

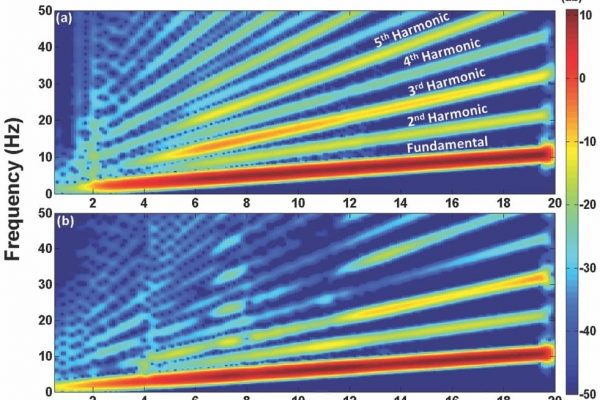

At minimum, a vib controller should keep a linear sweep within a steady phase and amplitude range so geophysicists have greater confidence that changes in recorded amplitudes are indeed a derivative of the geology. The Vib Pro HD not only achieves this consistency, but delivers patented technology designed to filter real-time harmonic distortion which improves the source signature and mitigates cross-contamination during simultaneous sweeping.
Additionally, we have implemented new algorithms that ensure vibrators are staying within +/- 10 degrees phase at the low and high end of the frequency spectrum. Traditional vib controllers can support an upper limit of around 120Hz, while at the lower frequency range (2-3Hz) phase distortion can exceed 30-40 degrees. These constraints make it difficult to capture broadband data used for inversion workflows.
Sadly, phase distortion is virtually impossible to remove during processing, and will present random time shifts in the data. INOVA’s patented controller technology helps vibrators deliver consistent energy throughout the duration of the sweep from <1 to 400Hz*.
The combination of INOVA vibrators and Vib Pro HD helps crews deliver impeccable data quality while reducing vibrator fatigue.

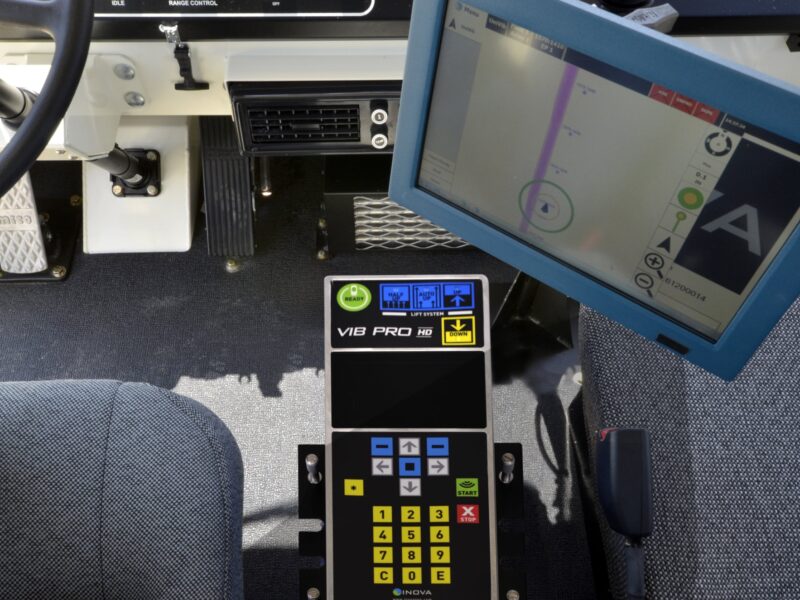

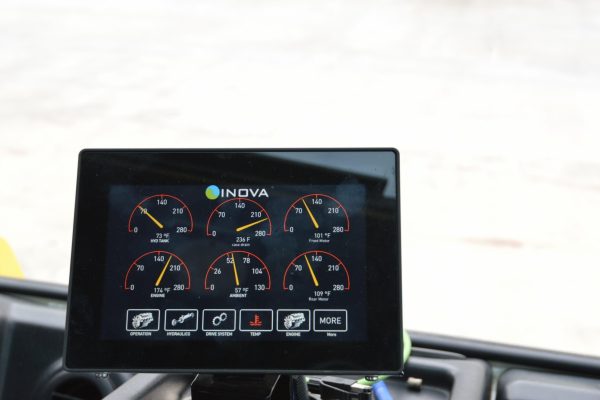

Vib Pro HD ensures sweeps stay within phase and frequency, and are delivering the appropriate force without overdriving the vibrator. The new design is easier to operate on account of the large buttons and displays, and programming and data transfer can occur via WiFi, ethernet or USB. Best of all, Vib Pro HD supports a wide-variety of sweeps including high-productivity, simultaneous and independent shooting methods.
The Quantum wireless sensor network is powered by Inova’s iX1 software, an operating system for seismic acquisition that simplifies field operations and greatly reduces the inefficiencies of master/slave hybrid programs. iX1 consolidates source control and spread management into one comprehensive view for the Observer. It also enables single command and control over hybrid nodal and cable-based operations between G3i HD and Quantum or Hawk. Best of all, the iX1 console offers a module for nodal data downloading, transcription and management. One platform does it allLearn More
Vib Pro HD Technical Specifications
|Voltage Input:||9 Vdc –36 Vdc|
|*Frequency Range:||<1 Hz to 400 Hz (UNIVIB, UV2) <1 Hz to 250 Hz (AHV-IV)|
|Timing Synchronization:||Local GPS or analog radio message|
|Start Time Accuracy:||±20 μs|
|GPS:||External only via 9-pin interface connector|
|Number of Sweeps:||32|
What does it all mean? Vibroseis terms can be confusing, and there are many terms used in seismic acquisition today. This is exacerbated by the fact that, in some instances, the same term is used with a different meaning depending on the context it is being applied. Our team here at INOVA discuss vibroseis terminology and explains terms like fundamental ground force and peak ground force as well as other common terms used today.
